BSIDE Handheld Thermal Imaging Camera-HX1 240×240IR Resolution -20~550C 15 Color Palette PC Analysis Software Industrial Tester

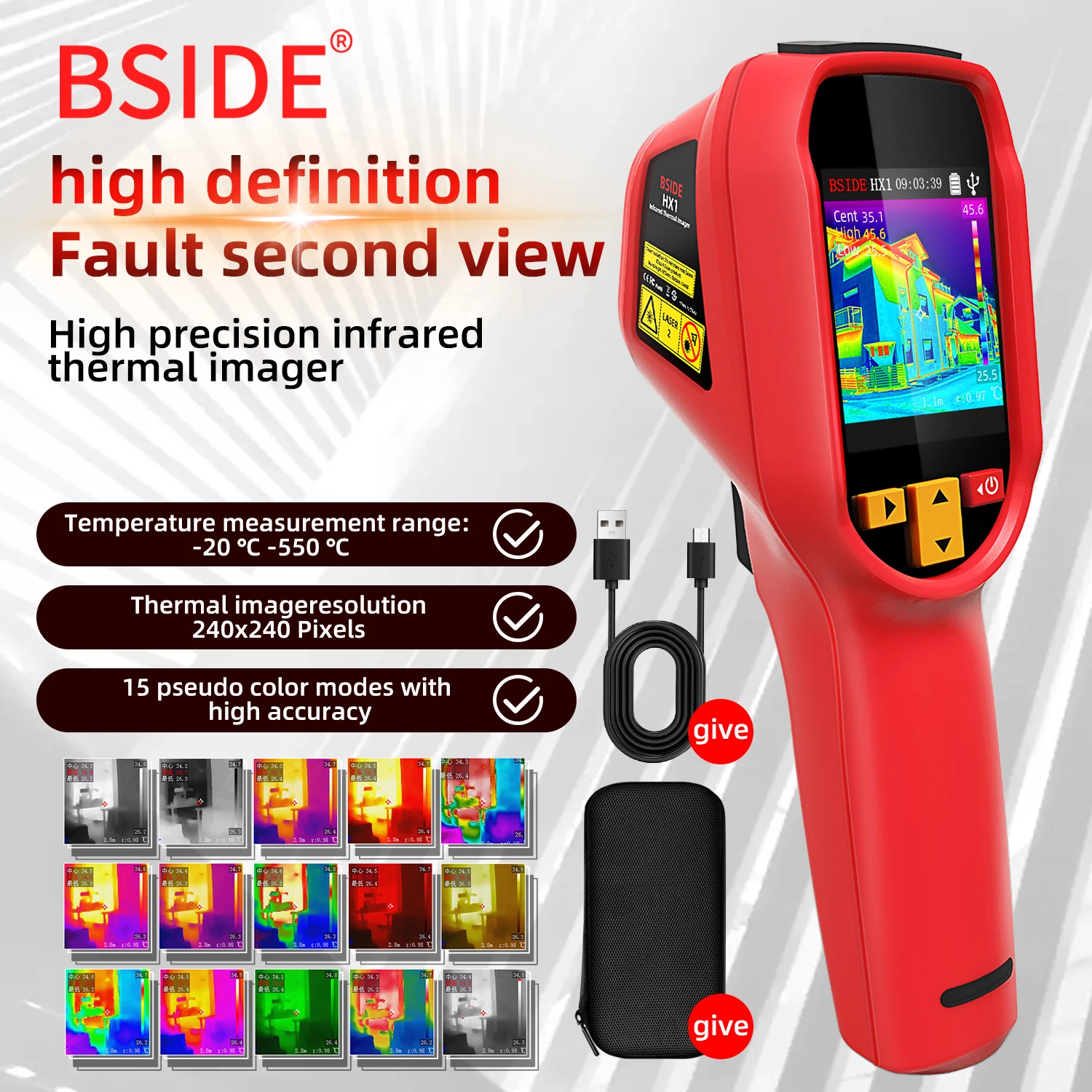

BSIDE HX1 is a brand new handheld thermal imaging camera that combines temperature measurement and imaging.
With IR resolution 240×240,2.4-inch screen,15 pseudo color modes withhigh accuracy High and low temperature alarm Adjustable emissivity Data storage and export Temperature analysis of stored pictures is possible.
The body adopts double injection molding process Durable.
Also comes with a high-quality EVA handbag.
Main features of HX1
IR resolution: 240 × 240
Screen: 2.4 inch LCD screen
Frame rate: 25Hz
15 pseudo color modes with
Temperature measurement range: -20 °C~550 °C
High and low temperature alarms: image, buzz, LED flashing
Laser Indicator/LED Illumination Laser Indicator/LED Illumination
Emissivity: 0.01~1

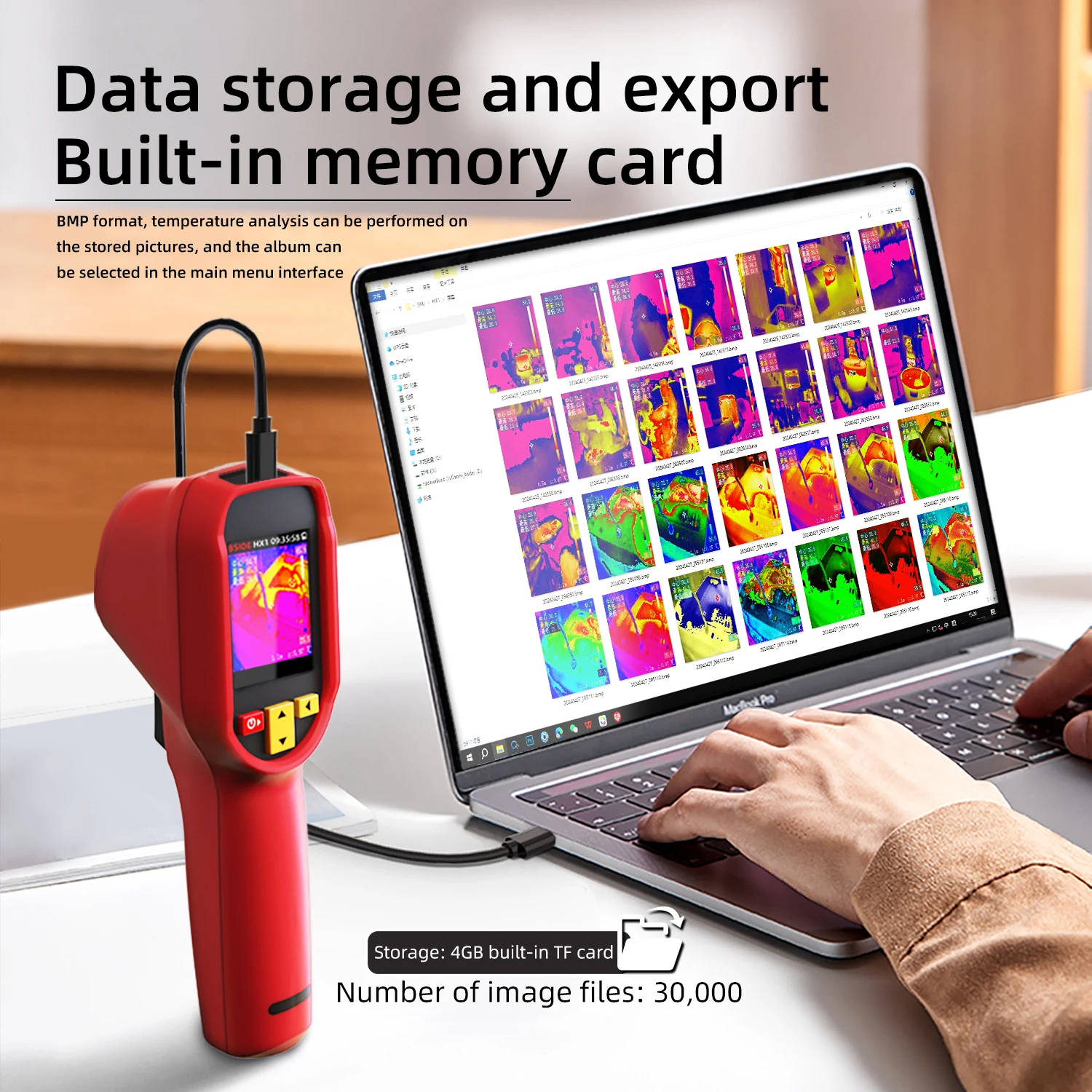

Storage: 4GB built-in TF card
Adjustable emissivity
Power supply: 2500mA lithium battery
Three-proof design: IP54/1.5m anti-drop
The bottom design has screw holes for use with a tripod






















Product model:
Product Model: BSIDE HX1
Sensor type: Vanadium oxide microbolometer
IR resolution: 240 x 240
Response band: 8-14 μ m
Frame rate: 25Hz
NETD:< 60mK @ 25 °C
Field of view (FOV): 50°H×50°V/72.1°D
Spatial resolution (IFOV): 8.89mrad
Focal length of imaging lens: 1.35mm
Temperature measurement focal length: 0.3m~3m adjustable
Temperature measurement range: -20 °C to 550 °C
Temperature accuracy: ± 2 °C/± 2% (maximum reading)
Temperature measurement unit: °C/°F/Kelvin
Temperature measurement resolution: 0.1°C
Emissivity: 0.01~1.0 adjustable
Temperature measurement display: central point temperature measurement, high and low temperature tracking
Color Palette: White Hot, Black Hot, Fusion 1, Rainbow, Fusion 2, Dark Sepia, Color 1, Color 2, Iron Red 1, Iron Red 2, Fire and Ice, Rain, Green Hot, Red Hot, Dark Blue
Display: 2.4 inch TFT LCD screen
Display resolution: 320 x 240px
Buttons: Power button, Up button, Down button, Back button, Trigger button
Laser indication: Yes
Storage: Built-in memory card
Number of image files: 30,000
Image format: BPM
Focusing method: Autofocus
High and low temperature tracking: √
Temperature alarm: Screen font color alarm
Battery type: Rechargeable lithium battery (3.7V/2500mAh)
Charging system: Type-C direct charging
Data interface: Type-C USB
Illumination/Laser Instruction: √
Protection Rating/Fall Protection Rating: IP54/1.5m
Dimensions (L x W x H): 193.4 x 59.4 x 77.4 mm
Package Includes:
1 x HX1 Thermal Imaging Camera
1 x Charging Cable
1 x Instruction Manual
1 x User Manual
1 x Color Box
